This series, the Flow Matching Trilogy, is a journey through the past, present, and future of flow-based generative models.

• Part 1: introduces the theoretical foundations of Flow Matching, tracing its emergence from diffusion processes and normalizing flows toward a unified framework.

• Part 2: turns theory into practice, offering a systematic engineering guide on how to design, control, and accelerate Flow Matching systems.

• Part 3: looks outward, exploring the frontiers of research — from discrete and structured data to large-scale and multimodal models.

In the first article, we establishes the foundations of Flow Matching. It reviews the bottlenecks of diffusion models, the constraints of normalizing flows, and introduces the key idea of directly learning transformation paths between distributions. From Rectified Flow to Conditional Flow Matching and Stochastic Interpolants, it outlines how a simple intuition matured into a unified generative framework, paving the way for the practical design discussions in Part 2.

1. Introduction: Seeking the Third Road of Generation

Before we arrive at Flow Matching itself, it is essential to understand the two dominant paradigms that shaped the landscape of modern generative modeling: diffusion models and normalizing flows. Each offers a distinct philosophy — diffusion relies on stochastic forward processes and iterative denoising, while flows construct invertible mappings grounded in probability theory. Both reveal valuable insights but also expose fundamental limitations. By examining their strengths and bottlenecks, we prepare the ground for a third road - Flow Matching.

1.1 The Rise and Bottlenecks of Diffusion Models

Diffusion models have defined the state of the art in generative modeling. By gradually adding noise through a fixed forward process and then learning to reverse it, they can approximate extremely complex data distributions with remarkable fidelity. We have discussed many training and sampling techniques for diffusion models in the previous posts.

However, their reliance on iterative denoising is costly. Sampling often requires hundreds of steps, each invoking a deep network, which makes inference slow and error-prone. The method is powerful but simulation-heavy, as both training (via noisy forward diffusion) and inference (via numerical solvers) depend on repeatedly simulating stochastic dynamics.

1.2 The Elegance and Constraints of Continuous Normalizing Flows

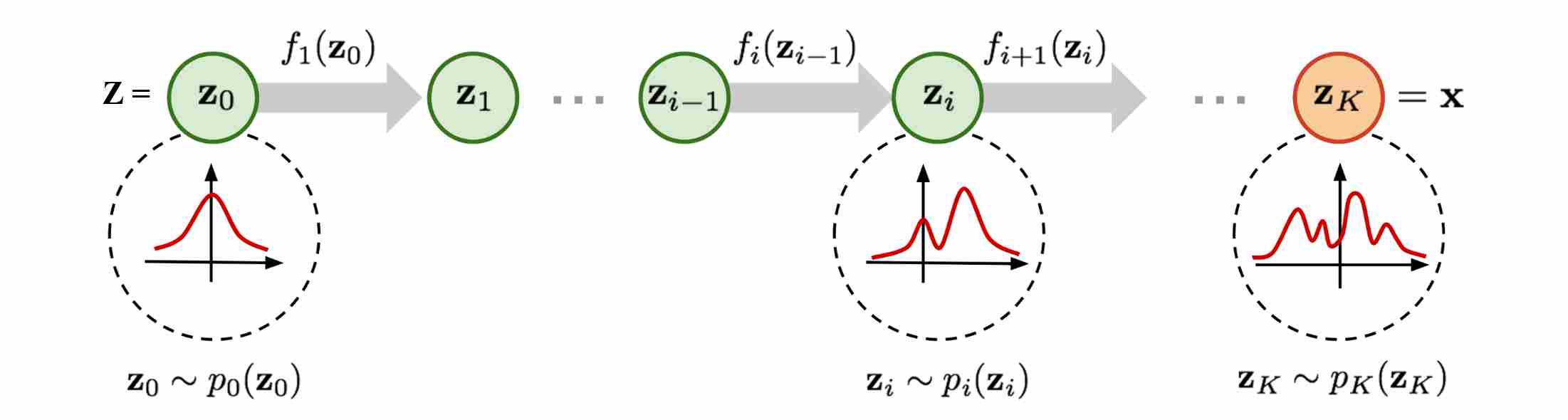

At the heart of Normalizing Flows (NFs) ^{1 2 3} lies a simple but powerful principle: the change-of-variables formula. It connects the density of a data point (denoted as $z$) in one space to the density of its transformed representation in another (denoted as $x$).

Suppose we have a random variable $z \sim p(z)$, where $p_z$ is a simple Gaussian distribution, we then construct a chain of $K$ invertible mappings:

By repeatedly applying the change-of-variables formula, we get the final variable $x \sim p(x)$, the density of $x$ is given by

Where $J_{f_i}$ is Jacobian Matrix. Thus, the entire model is exact likelihoods mathematically, as long as each transformation is invertible and its Jacobian determinant is tractable. However, the computation the Jacobian determinant of $f_i$ is very expensive in high dimensions.

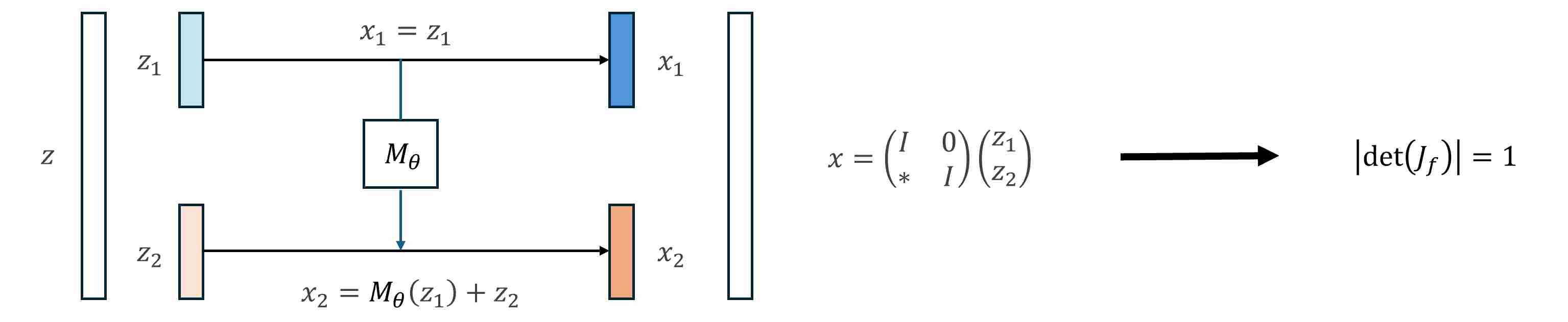

To make Jacobian computation feasible, invertible mappings should be designed for special architecture to guarantee a tractable Jacobian determinant. For example, Nice ¹ using additive coupling layer to make Jacobian determinant is equal to 1.

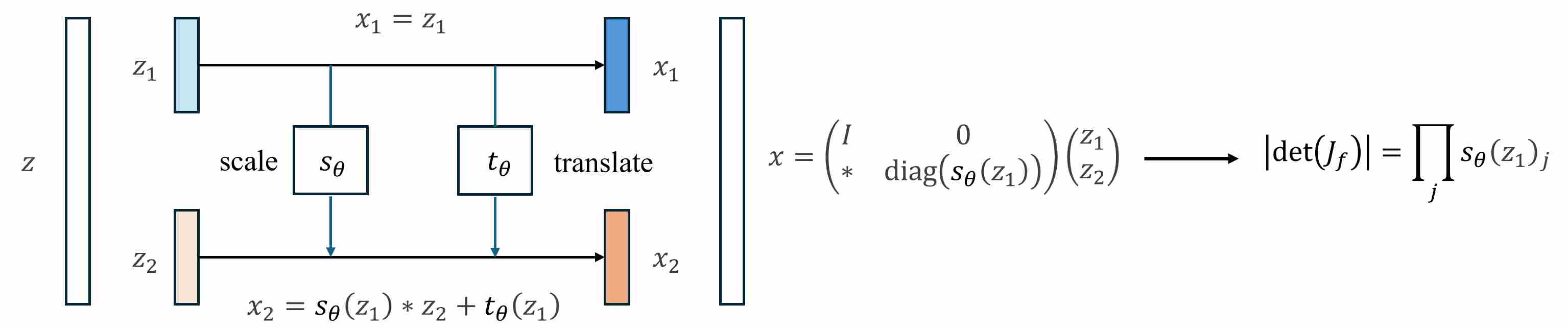

Real NVP ² extends NICE’s additive coupling to an affine coupling layer, which guarantees that the Jacobian determinant is just the product of elementwise scales (a diagonal matrix). This makes log-likelihood tractable while keeping the model invertible and expressive.

The move from discrete transformations to continuous-time transformations gave rise to Continuous Normalizing Flows (CNFs) ^{4 5}. Instead of stacking finitely many mappings, we let the transformation evolve under an ODE:

The corresponding density evolution is given by the instantaneous change-of-variables formula ⁴:

In theory, CNFs remove the architectural rigidity of discrete NFs, allowing any sufficiently expressive neural network to parameterize the vector field $v_\theta$. They provide a mathematically elegant and continuous-time perspective on generative modeling, bridging flows and differential equations.

However, the need to compute Jacobian traces is computationally expensive, and CNFs often demand architectures designed specifically to trade off expressivity and tractability. Training and sampling can be slow, and scaling to high-dimensional data remains difficult.

1.3 The Breaking Point: Toward Direct Paths Between Distributions

Between diffusion’s slow stochastic wanderings and CNF’s constrained elegance lies a natural question: must generative modeling always depend on heavy simulation or exact density tracking?

Imagine instead that we could directly learn the transformation path between two distributions — for example, between noise and data. Rather than simulating a process step by step, or computing exact likelihoods, we could regress a vector field that prescribes how samples should flow from one distribution to another. This reframes generative modeling as the study of currents of transformation, where the emphasis shifts from simulation to direct learning.

This insight marks the turning point for Flow Matching. It signals the possibility of a third road: a paradigm that is at once intuitive, efficient, and theoretically unifying.

2. Preliminaries

In this section, we first summarize the key terms and terminology needed for learning flow matching.

2.1 Vector Field, Trajectory and Flow

Vector Field: vector field is a function that assigns to each spatial point $x_t \in \mathbb R^d$ and time $t \in [0, 1]$ an instantaneous velocity $v_{\theta}(t, x_t)$:

ODE: ODE (Ordinary Differential Equation) is the dynamical law you impose using that vector field:

Solving this ODE from $t=0$ to $t=1$ is equivalent to sampling, whose goal is to transport an initial point $x_0$ to a target $x_1$ through space according to the learned velocities.

Trajectory: A trajectory $(x_0, \dots, x_{t}, \dots,x_1)$, is simply the solution of the above ODE for a given start point $x_0$. It’s the continuous path that the “particle” traces out under the influence of the vector field:

Or using the Euler method to solve in a discrete time step:

Flow: a flow is essentially a collection of trajectories that follows the ODE, that means by solving the above ODE we gather a lot of solutions for different initial points

2.2 Probability path

The first step of FM is to define a probability path, who specifies a gradual interpolation from initial distribution $p_{init}$ to target distribution $p_{\text data}$.

Conditional probability path: given an end point $z \sim p_{\text data}$, a conditional probability path is the distribution of an intermediate sample conditioned on $z$, denoted as $p_t(x_t \mid z)$ such that

Marginal probability path: marginal probability path defined as the distribution that we obtain by first sampling a data point $z ∼ p_{\text data}$ from the data distribution and then sampling from $p_t(x_t |z)$, we can formalize it as:

$p_t(x_t)$ satisfy $p_0(\cdot)=p_{init}$ and $p_1(\cdot)=p_{data}$. The difference between the marginal probability path and the conditional probability path can be illustrated as follows.

Takeaway. Please be noticed that, in diffusion models, it is more common to use $x_0$ to represent the clear original image and $x_1$ to represent noise; whereas in flow matching, the opposite is true, with $x_1$ more commonly used to represent the clear original image and $x_0$ to represent noise.

Takeaway. In this series of articles, I will use $ p_0 $ or $ p_{\text{init}} $ to denote the initial distribution; $ p_1 $ or $ p_{\text{data}} $ to denote the true data distribution; $ p_t $ to denote the distribution at an intermediate time $0 < t < 1$.

3. Origins of the Idea: From Rectified Flow

The question raised at the end of the $1 — can we directly learn the path between distributions? — found its first concrete answer in Rectified Flow (RF) ⁶. Rather than simulating a noisy process step by step, RF proposed a remarkably simple intuition: what if we could connect the data distribution and the noise distribution by the shortest, straightest path?

Suppose we have a data sample $x_1 \sim p_{\text{data}}$ and a noise sample $x_0 \sim p_{\text{init}}$. The most direct connection between them is the linear interpolation

The velocity along this path is simply the constant vector

Thus, instead of relying on stochastic simulation, RF frames generation as learning a deterministic vector field that drives samples along these straight trajectories. The learning objective is to regress a vector field $v_\theta(x,t)$ that matches the ground-truth velocity:

This turns training into standard supervised regression problem, with no need to simulate stochastic noise trajectories. At inference, RF generates by solving the learned ODE

4. Establishing the Flow Matching Paradigm

Diffusion model relies on the forward process, from which the reverse denoising SDE and PF-ODE are derived, which we refer to as the “process-first” generative paradigm. The core of Flow Matching (FM) ⁷, however, is to construct a probability path that connects the initial distribution $p_0$ to the target distribution $p_1$, which we refer to as the “path-first” generative paradigm.

4.1 Marginal path and Marginal vector field

Flow Matching begins by defining a more general marginal probability path, $p_t(x_t)$, that connects any pair of points $x_0 \sim p_0$ (noise) and $x_1 \sim p_1$ (data).

This path is a time-dependent probability distribution that satisfies the boundary conditions:

• at $t=0$, it concentrates on the starting point: $x_0 \sim p_0$.
• at $t=1$, it concentrates on the endpoint: $x_1 \sim p_1$.

Associated with this probability path is a marginal vector field, $v_t(x_t)$, which represents the instantaneous velocity required for a particle at position $x_t$ at time $t$ to stay on the trajectory defined by the path.

This temporal path of marginals can be realized by ODE dynamic: defining the probability-flow ODE via this velocity field.

under the continuity equation, we guarantees that the marginal distribution of $x_t$ at each time $t$ is exactly the prescribed path, i.e. $x_t \sim p_t$.

4.2 Consistency with the Continuity Equation

Now let’s prove why the ODE defined by the velocity field produces exactly the prescribed marginal densities $p_t$.

Step 1 — The marginal path defined in Eq. \ref{eq:15} satisfies the continuity equation

Take any smooth, compactly supported test function $\varphi:\mathbb{R}^d\to\mathbb{R}$. By the chain rule and our assumptions,

Disintegrate (i.e., condition on $x_t$):

On the other hand,

Equate Eq. \ref{eq:48} and Eq. \ref{eq:47}

Because this holds for all test functions $\varphi$, we obtain the continuity equation in weak (and hence classical) form:

This is simply conservation of probability mass under the velocity field $u_t$.

Step 2 — The ODE’s law (Eq. \ref{eq:17}) satisfies the same continuity equation

Consider the probability-flow ODE

Under standard conditions (e.g., $v_t(\cdot)$ globally Lipschitz in $x$, measurable in $t$), the ODE has a unique solution, and $x_t$ is a measurable function of $x_0$. Let $\mu_t$ denote the law (density) of $x_t$.

Repeat the same test-function computation:

But also \(\frac{d}{dt}\mathbb{E}[\varphi(x)]=\int \varphi(x)\,\partial_t \mu_t(x)\,dx\). Hence

So $\mu_t$ satisfies the same continuity equation with the same velocity field $v_t$ and the same initial density $\mu_0=p_0$. Therefore,

In words: the ODE driven by $v_t$ produces exactly the prescribed path of marginals.

4.3 Core objective: vector-field regression

With a general path $p_t$ and its target vector field $v_t(x_t)$ defined, the learning problem becomes remarkably direct. The goal is to train a neural network $v_\theta(x, t)$ to match the target vector field $v_t$ at all times $t$ and positions $x$. This is formulated as the Flow Matching objective:

4.4 Translating Perspectives: connections to CNF and PF-ODE

Flow Matching does not exist in a vacuum. It provides a new lens through which we can understand and unify existing paradigms.

• Connection to Continuous Normalizing Flows (CNFs): Both FM and CNFs learn a vector field $v_\theta$ to define a continuous-time generative model. However, CNFs are trained via maximum likelihood, which requires computing the computationally expensive Jacobian trace ($\text{Tr}(\nabla_x v_\theta)$). Flow Matching cleverly sidesteps this. The FM objective is a regression loss that is mathematically proven to guide the marginal probability path $p_t(x)$ to match the target data distribution, effectively achieving the same goal as CNFs but without the need for trace computations. It trades the exact likelihood objective for a more direct and scalable vector field regression.

• Connection to Probability Flow ODEs (PF-ODEs): Diffusion models also have a corresponding deterministic ODE for sampling, known as the Probability Flow ODE. This ODE’s vector field is derived from the score of the noisy data distribution ($\nabla_x \log p_t(x)$). To train a model to predict this score, one must simulate the forward stochastic noising process. Flow Matching provides a more direct route. It bypasses the need for a stochastic process and score estimation entirely by directly defining the desired path and regressing its vector field. While both frameworks ultimately yield a generative ODE, FM constructs it from a “path-centric” perspective, whereas diffusion arrives at it from a “process-centric” one.

By establishing this simple, scalable regression objective, Flow Matching created a powerful new paradigm for generative modeling—one that retains the continuous-time elegance of CNFs while offering the practical efficiency and performance of diffusion models.

5. Extension: Conditional Flow Matching

While Flow Matching provides a general regression framework, optimizing the target function shown in Equation \ref{eq:18} is very difficult, as directly estimating true target $v_t(x_t)$ is expensive: it requires integrating over all possible $z \sim p_{1}$ that generated by $x_t$.

Conditional Flow Matching (CFM) solves this problem by introducing a conditioning variable $z$ that makes the velocity target explicit and unbiased, while avoiding marginalization over all possible samples.

CFM begins by defining Conditional probability path ($2.2), $p_t(x_t \mid z)$, Here, $z$ is deterministic data sampled from $p_{\text data}$, rather than arbitrary data. Similarly, associated with this probability path is a Conditional vector field, $v_t(x_t \mid z)$, the relationship between Conditional vector field and marginal vector field is as shown in \ref{eq:19}.

Now, with the conditional vector field as the true target, we construct the objective function for CFM.

Conditional velocity field is tractable, which makes it feasible to minimize $\mathcal L_{CFM}(\theta)$ mathematically. Now let’s analyze why optimizing $\mathcal L_{FM}$ and optimizing $\mathcal L_{CFM}$ yield the same optimal vector field.

Consider the second term:

Now, Let’s substitute the second item with the result above:

Where $C$ is a constant, which means that minimizing $\mathcal L_{FM}$ is equal to minimizing $\mathcal L_{CFM}$ with represpect to $\theta$.

6. A Unified Framework: Stochastic Interpolants

FM defines a new generative paradigm: path-first. One first specifies a deterministic, noise-free path that continuously transports the initial distribution to the target distribution, and then learns the associated velocity field of this path. Sampling is performed by integrating the ODE defined by this velocity field. By the continuity equation, the evolution of the density along this ODE is guaranteed to coincide with the pre-defined probability path, so any sample $x_t$ indeed has the intended marginal density $p_t$.

Stochastic Interpolants (SI) ^{8 9 10} provides a profound generalization and unification of this “path-first” concept, establishing a meta-framework capable of accommodating both deterministic and stochastic dynamics.

1. Flexibility in Path Definition: SI defines the probability path connecting endpoints \((x_0 \sim p_{\text init}, x_1 \sim p_{\text data})\) through a general class of interpolating functions. The power of this framework lies in its ability to realize the evolution along this path via two distinct types of dynamical systems:

   • Deterministic Path (ODE): A vector field $v_t(x)$ is learned. The ODE dynamics it defines ensure, via the transport equation, that the evolution of the sample density aligns perfectly with the predefined probability path. This is in line with the concept of FM.

   • Stochastic Path (SDE): A diffusion term can be added to the ODE, forming a Stochastic Differential Equation (SDE). To ensure that the marginal density evolution of the SDE still follows the predefined path, one must learn not only the drift component (related to the vector field) but also the interpolant score function, $\nabla_x \log p_t(x)$. In this case, the Fokker-Planck equation guarantees the consistency between the SDE dynamics and the probability path.

2. A Unified Learning Perspective: SI offers a unified perspective for learning these dynamics. Training the deterministic vector field corresponds to a simple regression task. Learning the stochastic SDE can be viewed as augmenting this task with an additional score-matching objective.

6.1 From Deterministic to Stochastic Interpolations

The first step of SI is to define a probability path \(\{p_t\}_{t\in[0,1]}\) that connects two endpoint distributions. Formally, let

• $p_0$: the initial distribution (e.g. Gaussian noise),
• $p_1$: the target distribution (e.g. data),
• $x_0 \sim p_0$, $x_1 \sim p_1$: random samples from the endpoints,
• $\zeta \sim p(\zeta)$: an auxiliary random variable (often standard Gaussian), used to inject extra variability.

A stochastic interpolant is then a mapping

where $\Phi$ is any function that satisfies the boundary conditions

In words: $\Phi$ defines how a sample moves from $x_0$ to $x_1$ as time runs from 0 to 1. The randomness $\zeta$ gives you freedom to design noisy paths (not only deterministic straight lines). This construction induces a family of marginal distributions

which we call the interpolant path of densities. In practice, $\Phi$ is usually specified by a simple analytic formula with two pieces

1. a deterministic interpolation between $x_0$ and $x_1$, denoted \(I(t, x_0, x_1)\);
2. an optional stochastic perturbation term $\sigma(t)\,z$, where $z \sim \mathcal N(0, I)$. Here $\sigma(t)$ is a scalar (or matrix) noise schedule, controlling how much randomness is injected at each time. By design, $\sigma(0)=\sigma(1)=0$, so that noise vanishes at the endpoints and the path is anchored at $x_0$ and $x_1$.

6.1.1 Two-sided interpolants

Both endpoints $(x_0, x_1)$ appear explicitly in the interpolation:

At $t=0,\,x_t=x_0$; $t=1,\,x_t=x_1$. Noise vanishes at both ends, ensuring exact matching. $\sigma(t)$ is a time-dependent noise scale.

• if $\sigma(t) \equiv 0$, this reduces to deterministic flow matching. Specifically, if we set $\alpha(t)=(1-t)$ and $\beta(t)=t$, the path is a linear path.

• With nonzero $\sigma(t)$, you inject extra Gaussian noise along the bridge.

Thus FM can be viewed as a special case of SI with two-sided interpolants.

6.1.2 One-sided interpolants

Another important case is one-sided interpolants, which only one endpoint (usually the data sample) appears, while the other end is pure noise:

The path depends only on one endpoint $x_1$ plus Gaussian noise $z$. This is exactly the structure of diffusion forward process.

6.2 Deterministic ODE dynamics

The probability path ($\sigma(t)=0$) induces a velocity field

Defining the probability-flow ODE via this velocity field

and under the continuity equation, guarantees that the marginal distribution of $x_t$ at each time is exactly the prescribed path, i.e. $x_t \sim p_t$.

6.3 Stochastic SDE dynamics

Alternatively, one can realize the same path through a stochastic differential equation

Here, besides the velocity field, the score function $\nabla_x\log p_t$ is required to compensate for diffusion. With this correction, the Fokker–Planck equation guarantees that the marginals remain the same, so that again $x_t \sim p_t$.

6.4 Connections and contrasts with FM and SDE-Based Diffusion Model

6.4.1 Stochastic Interpolants vs Flow Matching

Flow Matching (FM): Introduces the path-first paradigm in generative modeling. The first step is to construct a deterministic path, which connects any two endpoint distributions without adding noise; The evolution of this path over time $t$ can be realized by a deterministic Ordinary Differential Equation (ODE)

Stochastic Interpolants (SI): Extends the path-first paradigm further. Allows interpolants to be stochastic, not just deterministic. Therefore, the evolution of this path over time $t$ can be realized through two distinct types of dynamical systems: ODE for deterministic path, and SDE for stochastic path. SI is best viewed as a general framework, within which FM appears as the noise-free special case.

We can use the following table to compare the connections and differences between the two

6.4.2 Stochastic Interpolants vs Score-based Diffusion Models

Both Score-based Diffusion Models and SI acknowledge that the same probability path $p_t$ can be realized using either a SDE or a PF-ODE, with both sharing identical marginal distributions. The key distinction lies in their paradigms:

Score-based Diffusion Models: Introduces the Process-first paradigm . Starting with a forward SDE, and sample with the reverse SDE. PF-ODE is derived as a deterministic equivalent of the reverse SDE, ODE is a corollary.

SI: Introduces the Path-first paradigm in generative modeling. The central object is to construct a probability path that maps any two distribution. Both ODE (continuity equation) and SDE (Fokker–Planck) are equally primary realizations of the path.

Another important distinction is that diffusion models usually take one endpoint to be pure noise data (following a standard normal distribution), whereas SI does not have this restriction and can interpolate between any two distributions $p_0$ and $p_1$. We can use the following table to compare the connections and differences between the two

6.5 Core value of the SI framework

• Once a probability path is defined, one can always construct either a deterministic ODE or a stochastic SDE to realize it. No matter which realization is chosen, the samples $x_t$ obtained at any time $t$ are distributed exactly the same marginal probability distribution $x_t \sim p_t$.

• SI framework decouples the design of the path from the implementation of the dynamics. We can first focus on designing a path with desirable properties (e.g., shorter, more direct, or with larger variance in certain regions to facilitate learning). Only then do we consider whether to implement it using ODE or SDE dynamics and how to efficiently learn the corresponding dynamical system.

• SI provides a training framework for connecting any two distributions, meaning it is no longer limited to mappings from real data to Gaussian noise but can involve transformations between any distributions, such as from images to audio, text to images, and so on.

8. References
